LED dance floor screen
Home>>LED screen

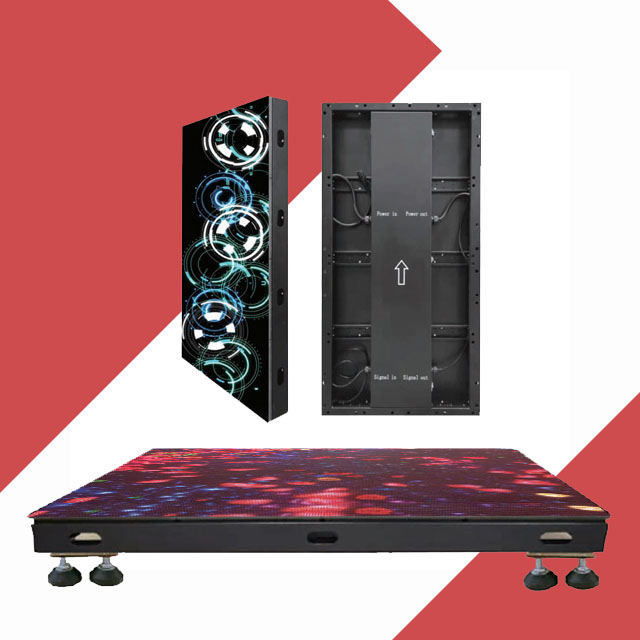

LED interactive induction dance floor screen
Indoor and outdoor: P3.91
Size: 500*500MM 500*1000MM
Wear-resistant
HD display
seamless stitching
energy saving
IP66 waterproof
| LED dance floor screen specifications | |||||
| F-Series Outdoor | FO 3.9 | FO 4.6 | FO 4.8 | FO 5.2 | FO 6.2 |
| Pixel pitch (mm) | 3.91mm | 4.625mm | 4.81mm | 5.2mm | 6.25mm |
| Pixel matrix per square meter | 65536 | 46656 | 43264 | 36864 | 25600 |
| Pixel configuration | SMD1921 | SMD2727 | |||
| Brightness (nits) | 4000 | 4500 | 5000 | ||
| Scan | 1/16 | 1/13 | 1/10 | ||
| Cabinet Resolution | 128x128 | 108x108 | 104x104 | 96x96 | 80x80 |
| Power consumption (max/average) | 750/230 w/sq.m | 730/220 w/sq.m | 700/220 w/sq.m | 710/210 w/sq.m | 710/210 w/sq.m |
| Module size | 250x250mm/0.82x0.82f | ||||
| Cabinet size | 500x1000x80mm(1.64x3.28x0.26ft) | ||||
| Cabinet weight | Cabinet weight 14kg (iron) | ||||
| Service visit Access | Front/Rear | ||||
| Load Bearing | 2T | ||||
| Refresh rate (HZ) | 1920 | ||||
| Grayscale (bits) | 16 | ||||
| Viewing angle (HM) | 140/140 | ||||
| IP rate | IP65 | ||||
| Input Voltage (AC) | 110/240 | ||||
