YXC-B350

Home>>Stage lighting


The 17R 350W three-in-one lamp has three effects: a small sharp beam angle can also wash a large area evenly, and the pattern is clear. Large-size touch screen display + buttons, Chinese and English Diplsay board intelligent flip function. The low-voltage protection power lens developed for low-voltage countries is a linear lens with a clear pattern in any position and size. programme. 16pcs ultra-quiet motor span&tilt 3-phase stepper motor 16bit, ultra-fast and ultra-quiet 3-phase stepper motor Color temperature is 8000K and lifespan is 2000Hs.Basic fixed gobo, rotating glass gobo, double prism frost primrainbow platinum bulb, split power supply, DMX hand strap. Beamwashspot stage master effects for outdoor performances, banquet halls, function rooms, stage carts, bar parties and various stages


The moldings are made of refractory fine sand material, which is easy to clean. 13 colors with white duotone effect. 14 fixed gobos with open loop 9 switchable white rotating 3D gobos.Any two prisms can be superimposed to combine dynamic effects (16 prisms + 6 prisms / 16 + 8 prisms),Forward and reverse switching effects.


Product name

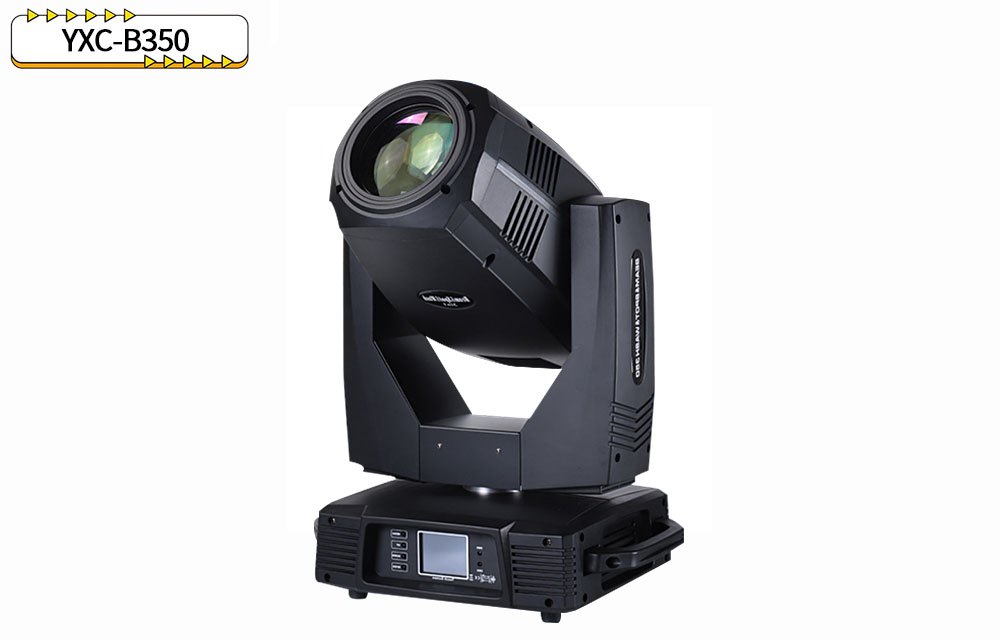

350W 17R moving head beam spot wash 3 in 1 stage light
Power supply
AC90-240V, 50/60Hz
Light source
350W
Dimming
0-100% linear dimming
Channel mode
20 standard DMX512 channels, master-slave mode
Oblique scanning
270 degrees (160bit precision scanning) electronic error correction
Color wheel
1 color wheel, 13 colors + white, rainbow effect speed adjustable, half step color effect
Fixed gobo wheel
1 fixed gobo wheel, 14 fixed gobos + white, bidirectional variable speed rotation
Rotating gobo wheel
1 rotating gobo wheel £¬9 can change gobo wheel + white, gobo from slow water to fast water
Optical lens
high-precision lamination lens combination
Focus
Linear focus
Scaling
Linear scaling
Beam angle
2 degrees to 38 degrees
Strobe
Double strobe (0.5-9 times/second)
Display
Color touch screen

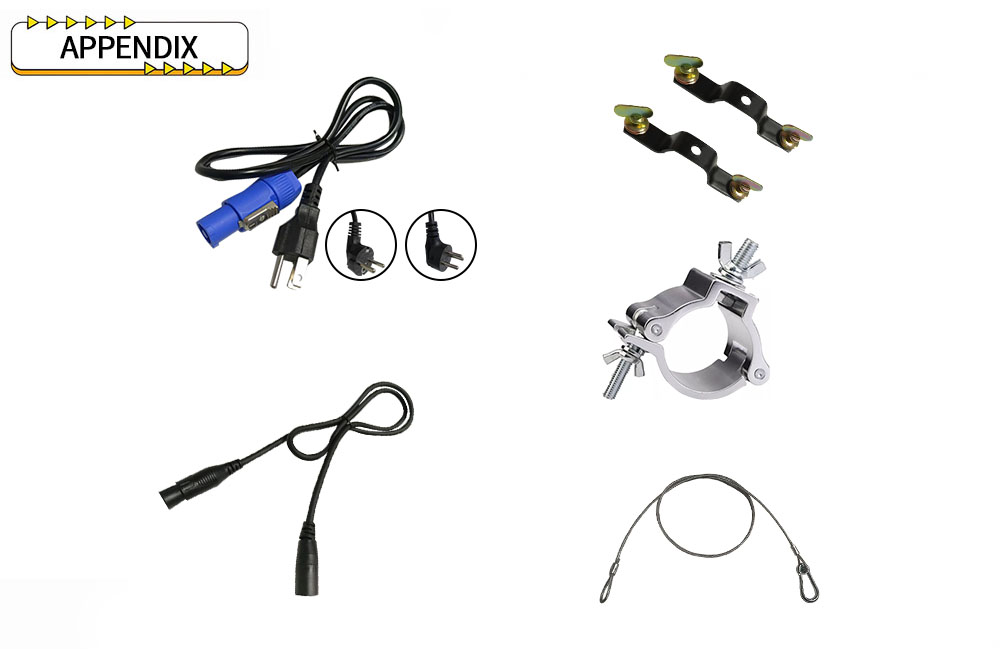

Power cable europcan/american/british oprional DMX signal line 3pin optional OMEGA standard for clamps

Clampsoptional 48-51mm max 300kgho-ok for truss Safety cable optional 4MM,length 680MM safety cable

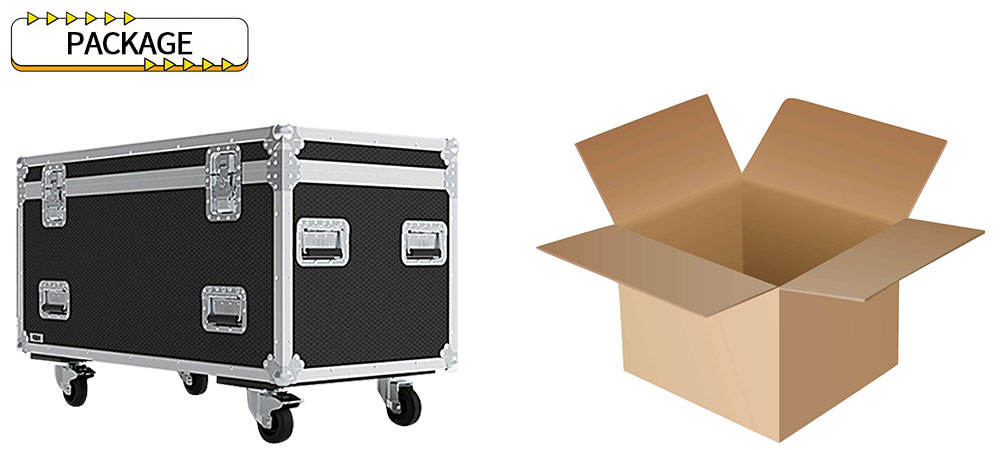

ROXTER case optional Flight case 1IN1/2 IN 1               foam shell optional
