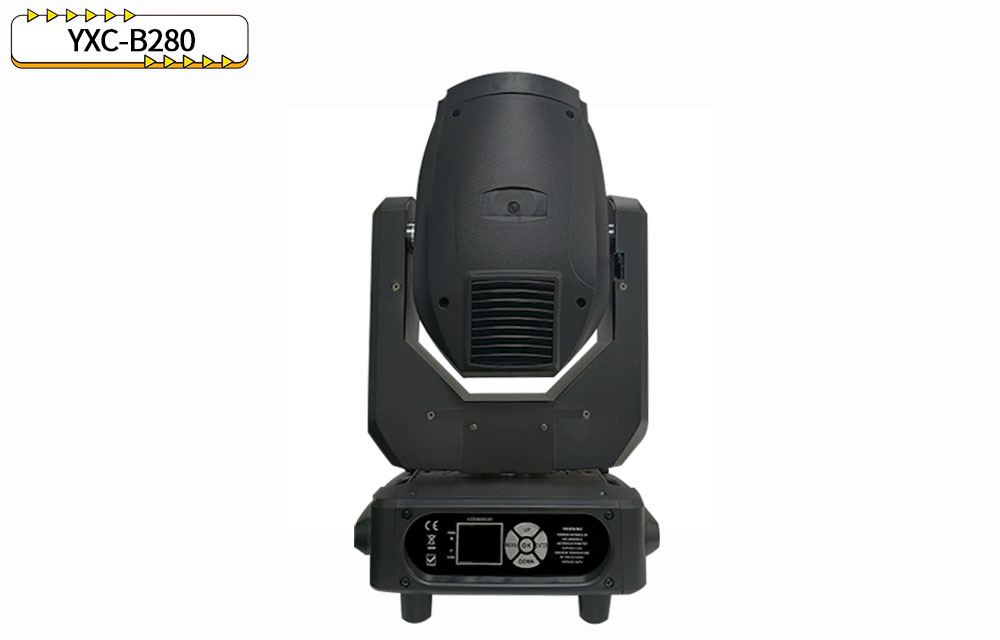

YXC-B280

Home>>Stage lighting


Beautiful dot matrix display, four tact switches, can be reversed 180° display, a color wheel, each color wheel is composed of 14 color chips + white, the rotation speed is adjustable, two-way water effect and rainbow effect gobo wheel Fixed gobo wheel, 17 gobo effects + white light, prism: 56 honeycomb prisms, 16 prisms, double prisms can be superimposed and can be rotated independently in both directions. Focusing: Linear focusing, from near to far. With atomization function, the atomization speed is adjustable. 0-100% mechanical dimming, support mechanical strobe and adjustable speed strobe effect, support strobe macro function, mechanical strobe is 1-12F.P.S. Lens group optical system motorized focus,


Using photoelectric reset system, when accidental misoperation occurs, it can automatically retrieve and reset horizontal 540°, 8Bit/16Bit fine-tuning vertical 270°, 8Bit/16Bit fine-tuning, with horizontal and vertical fine automatic error correction function. Overheating protection, AC/DC switching power supply. LCD.


Name
Super Beam 280W
Power supply
AC100-240V, 50/60Hz
Total power
450W
Working temperature (°C)
10-30
Lifetime (hours)
36000
Type
Beam Light
Temperature
Thermal protection, external temperature 40°
Luminous flux
7950lm
Color temperature
8500K
Ballast
Electronic Inductive Ballast
Control mode
DMX512/WDMX/self-propelled
Channels
18 channels
Beam angle
0~4°
IP protection class
IP20
Net weight
16KG
Dimensions
320x220x580mm

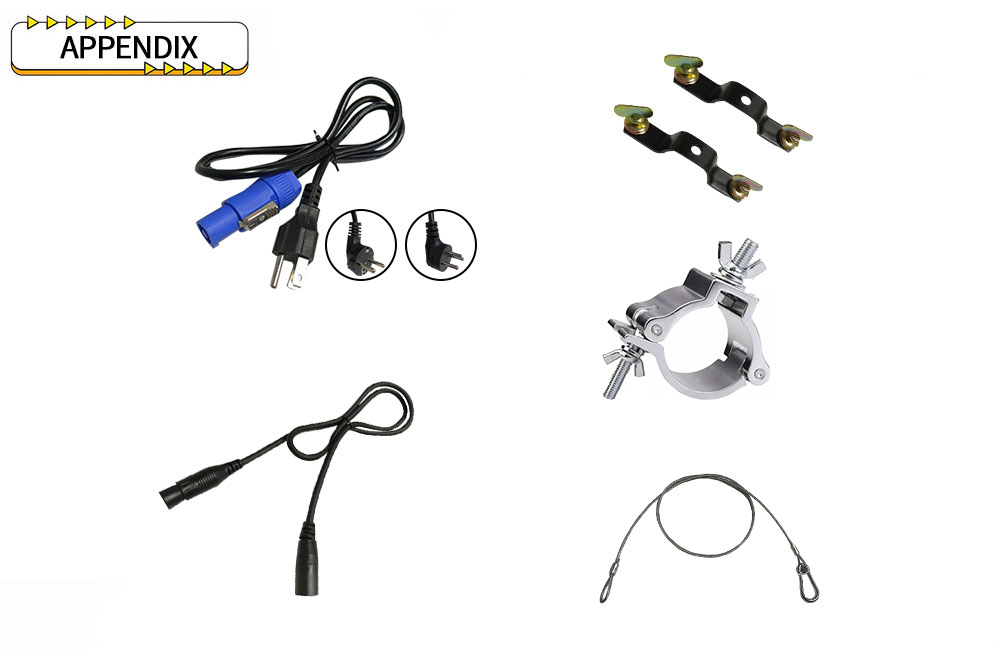

Power cable europcan/american/british oprional DMX signal line 3pin optional OMEGA standard for clamps

Clampsoptional 48-51mm max 300kgho-ok for truss Safety cable optional 4MM,length 680MM safety cable

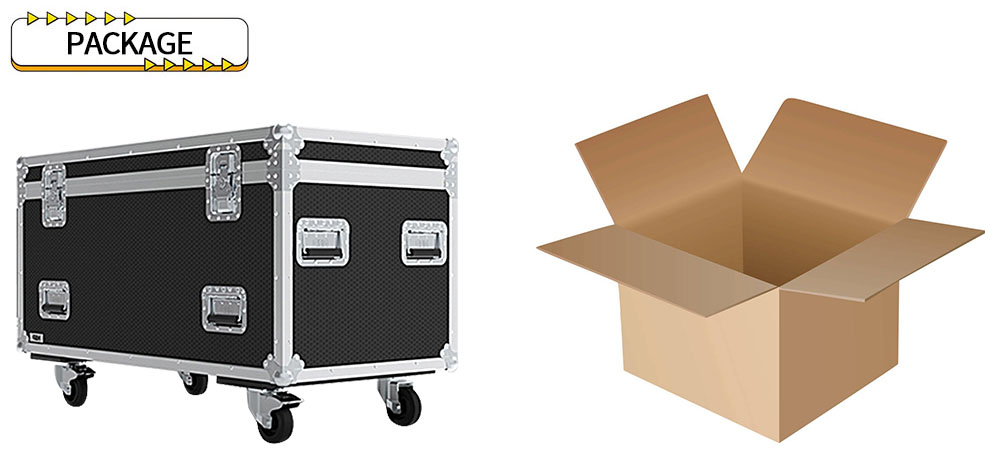

ROXTER case optional Flight case 1IN1/2 IN 1               foam shell optional
