YXC-LQ400

Home>>Stage lighting


Dimmer 0-25HZ/s, electronic linear dimming, high-speed strobe, a variety of strobe effects, soaring linear focus function, with automatic buffer battery (optional), edit menu in no power state, 2.8-inch LCD touch screen, Switch between Chinese and English at will, and the font is automatically reversed at 180 degrees.


3 independent CMY color mixing system, you can mix any color you want. The CTO independently raises and lowers the color temperature chart. Fixed pattern plate, 8 patterns open, pattern flow effect, pattern jitter effect, can achieve bidirectional flow effect. Dynamic effect wheel, 1 dynamic effect wheel, can do water ripple point flame effect, rotating gobo wheel, 7 rotating gobos are turned on, pattern flow effect, pattern jitter effect, can achieve two-way flow effect.


Name

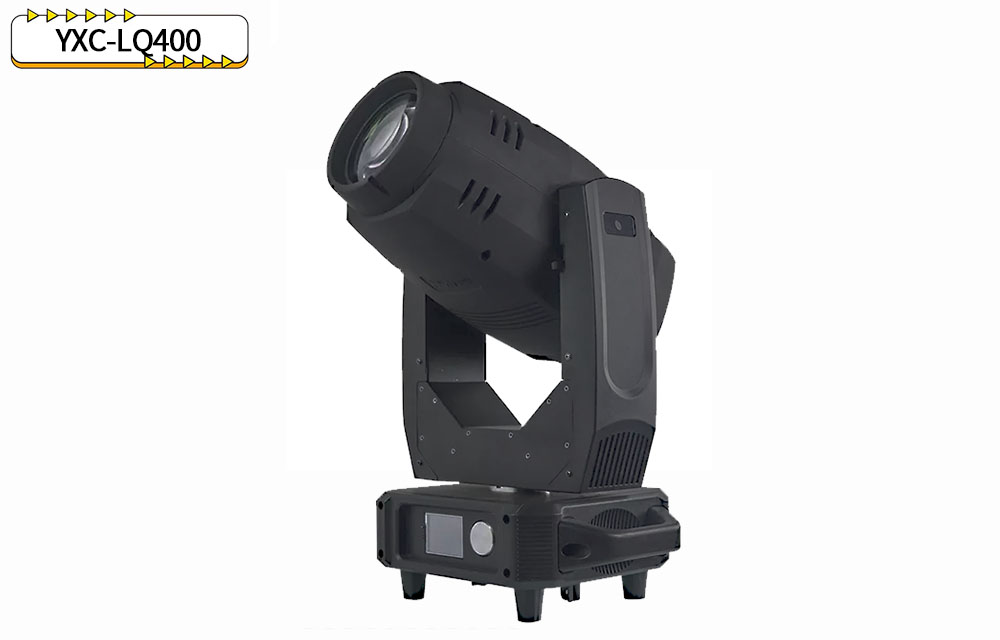

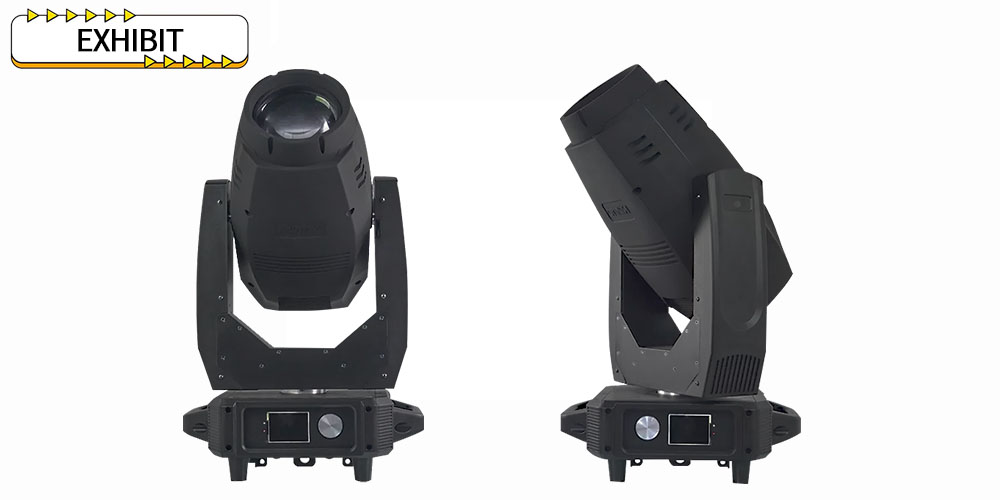

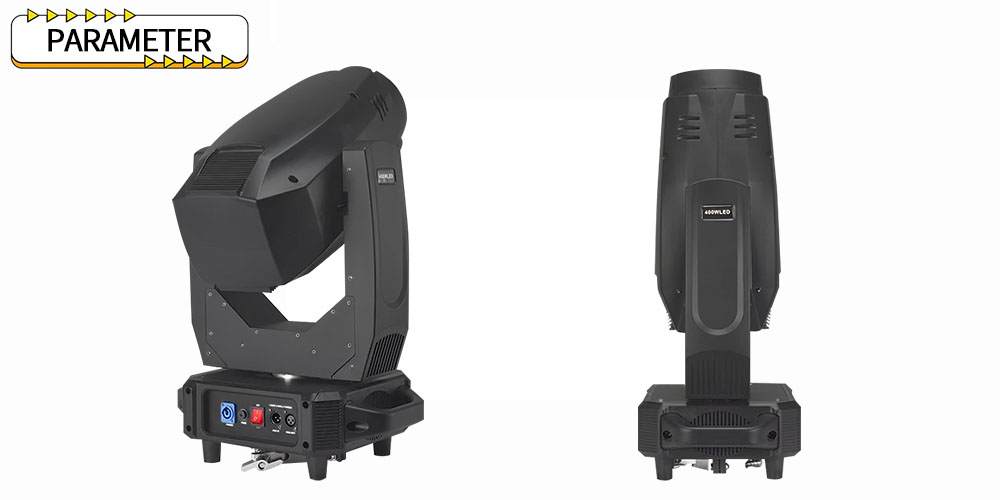

New Super Bright 400W CMY LED Beam Spot Wash 3 in 1 Moving Head Light
Input voltage
AC100-240V 50/60Hz
Power rating
580 watts
LED light source
high brightness 400W LED
Life
50000 hours
Zoom angle
7°-42°
Horizontal
540 degree 16bit fine-tuning
Vertical
270 degrees 16bit fine-tuning
Channels
21 standard DMX channels with RDM function
Frost function
Adopt one-piece frost prism to achieve dyeing effect
Prism
3 prism effects, can rotate independently in both directions
Net weight
25KG
Product size
396*289*694 mm

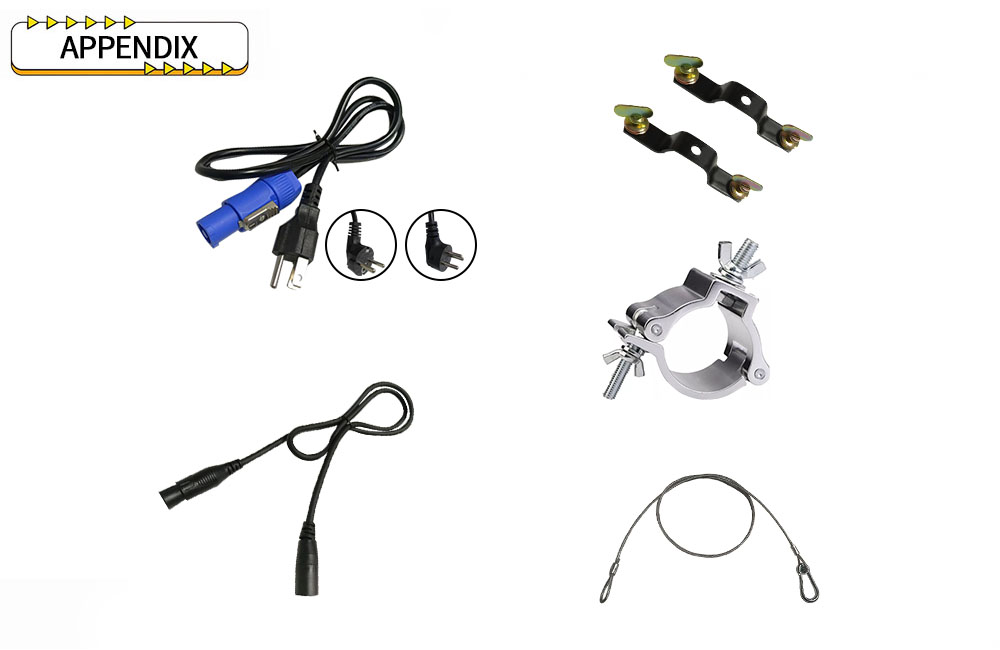

Power cable europcan/american/british oprional DMX signal line 3pin optional OMEGA standard for clamps

Clampsoptional 48-51mm max 300kgho-ok for truss Safety cable optional 4MM,length 680MM safety cable修改.jpg

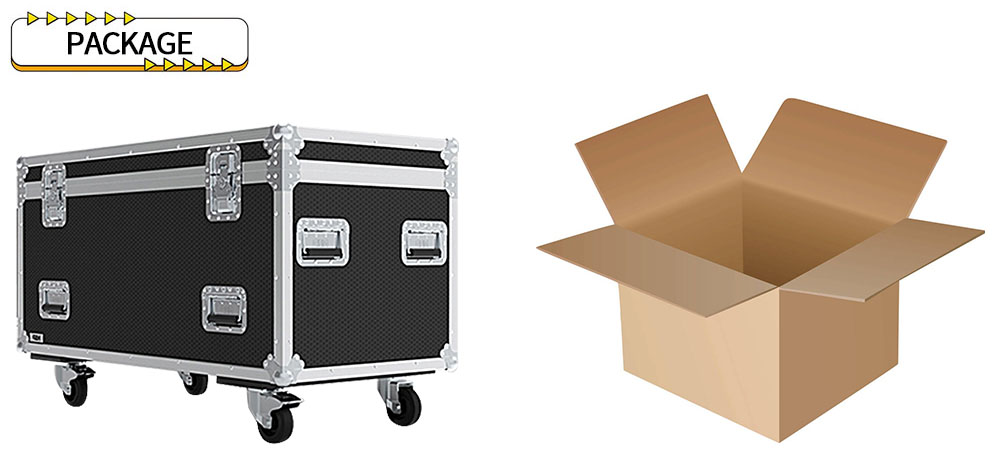

ROXTER case optional Flight case 1IN1/2 IN 1               foam shell optional
