500*1000F
Home>>LED screen

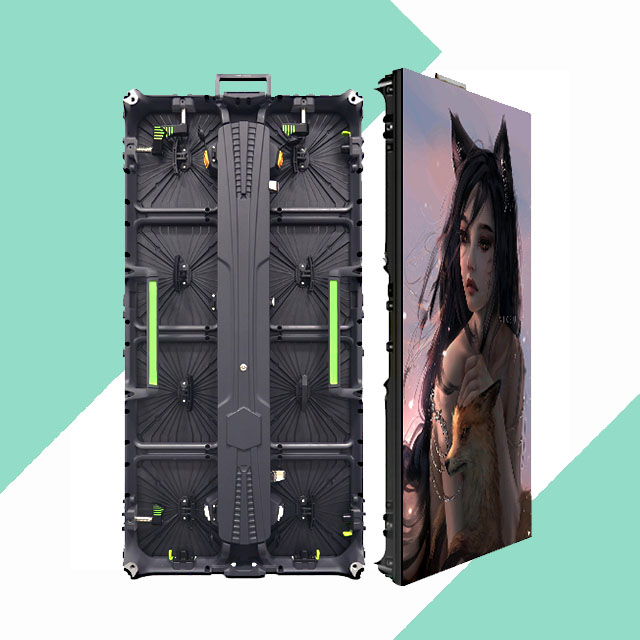

Indoor and outdoor: 500*1000F
Available spacing: P2.6 P2.9 P3.91 P4.81
LED module size 250*250mm
Seamless splicing, perfect installation
Super wide viewing angle, new experience
HD color realistic
High refresh rate and stable display
Low energy consumption and more environmental protection
| 500*1000MM PRODUCT PARAMETER | ||||
| pixel pitch | P2.6mm | P2.9mm | P23.91mm | P4.81mm |
| pixel density | 112,896 points/square meter | 65536 points/square meter | 65536 points/square meter | 43264 points/square meter |
| coloring scheme | 1R1G1B | |||
| LED package | Patch 2121 | Patch 1921 | ||
| Module size | 250mmx250mm | |||
| drive mode | 1/16 sweep constant current | |||
| brightness | 1000cd/square meter | 4500cd/square mete | ||
| best viewing distance | 2-30m | 3-40m | 3-40m | 4-50m |

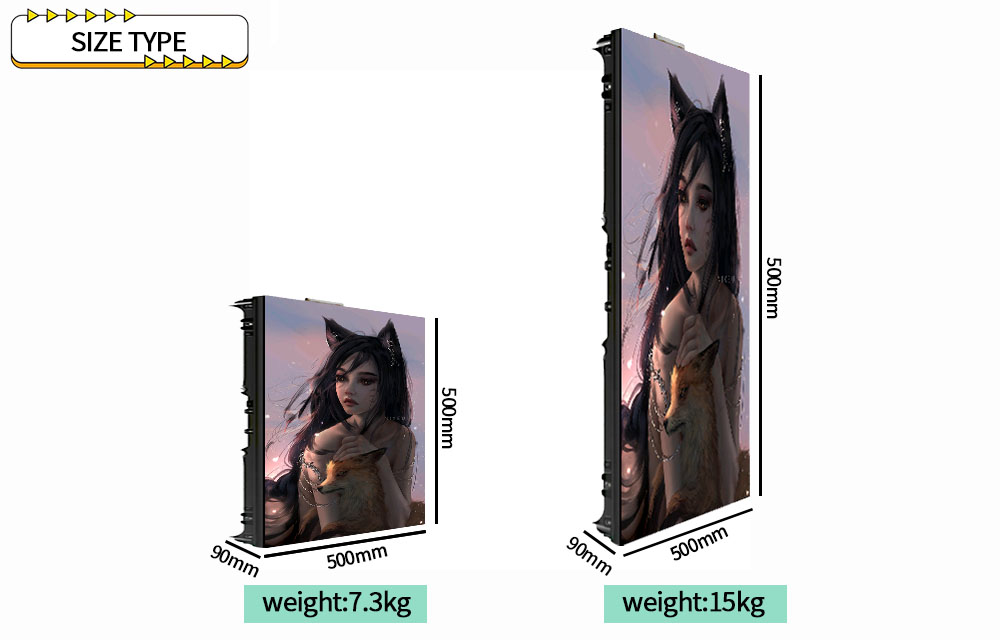

| Cabinet size | 500*500mm/500mmx1000mm | |||
| Cabinet weight | 6.5KG/12KG | 7KG/13KG | ||
| refresh rate | 3840HZ | 1920HZ | ||
| grayscale | 16 bit | |||
| Operating temperature | -20℃~+50℃ | |||
| power input | AC110V/ 220V ±10%.50HZ | |||

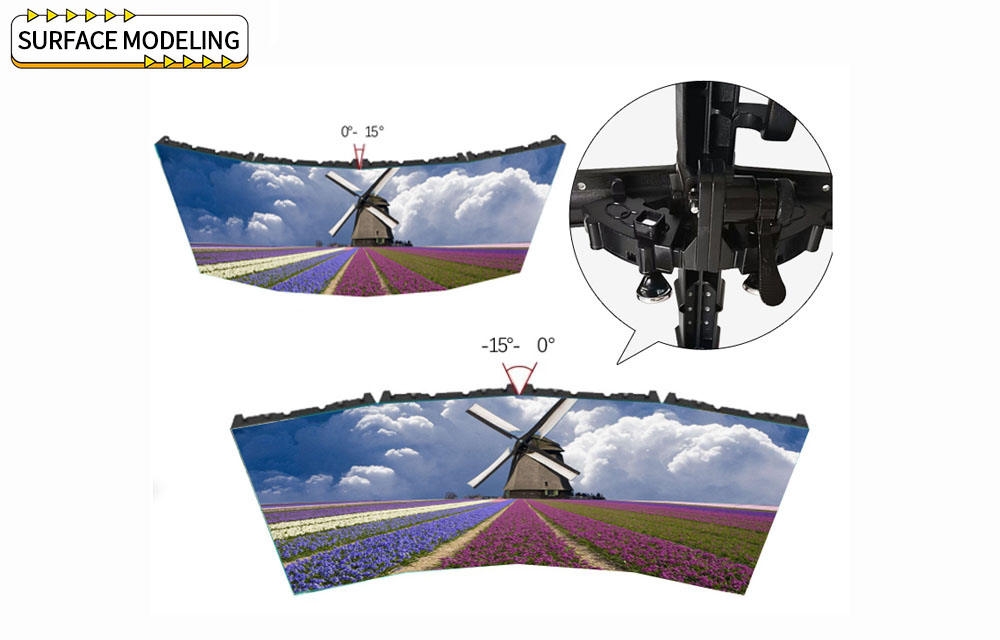

Curved led screen can be achieved by curved lock, it can make both inner and outer arc0-15 degrees and-15-0 degrees.
