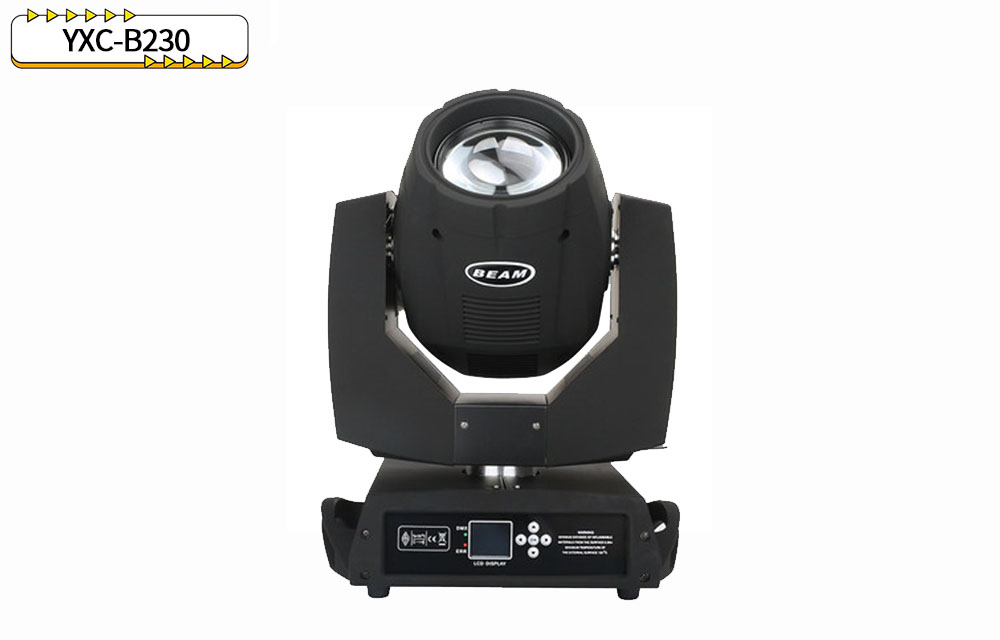

YXC-B230
Home>>Stage lighting
230W Beam Light ,Fixed color 14 color chips + white light (adjustable half color effect) / rainbow effect,Double pattern 9 glass rotating patterns, 15 fixed patterns
Atomization An independent atomization effect, the light spot is soft and natural, Control channel 16 international standard DMX512 channel mode
Color 1 seven-color piece (can do colorful rainbow effect)
Prism 16 prism + 8 prism double prism, can be superimposed and rotatable function 0-100% mechanical dimming
| Product name | 230W beam light |
| Voltage | AC110-240V/50-60HZ |
| Bulb | Osram bulb |
| Power | 350W-400W |
| Lamp life | 2000H |
| Dimming | 0-100 linear dimming |
| Number of channels | 16CH/20CH |
| Atomization | 0-99% linear atomization |
| Horizontal scan | 540 degrees (16bit precision scan) |
| Vertical scan | 270 degrees (16bit precision scan) |
| Pattern sheet | 17 patterns + white light |
| Control mode | DMX512/master-slave/self-propelled/voice control |

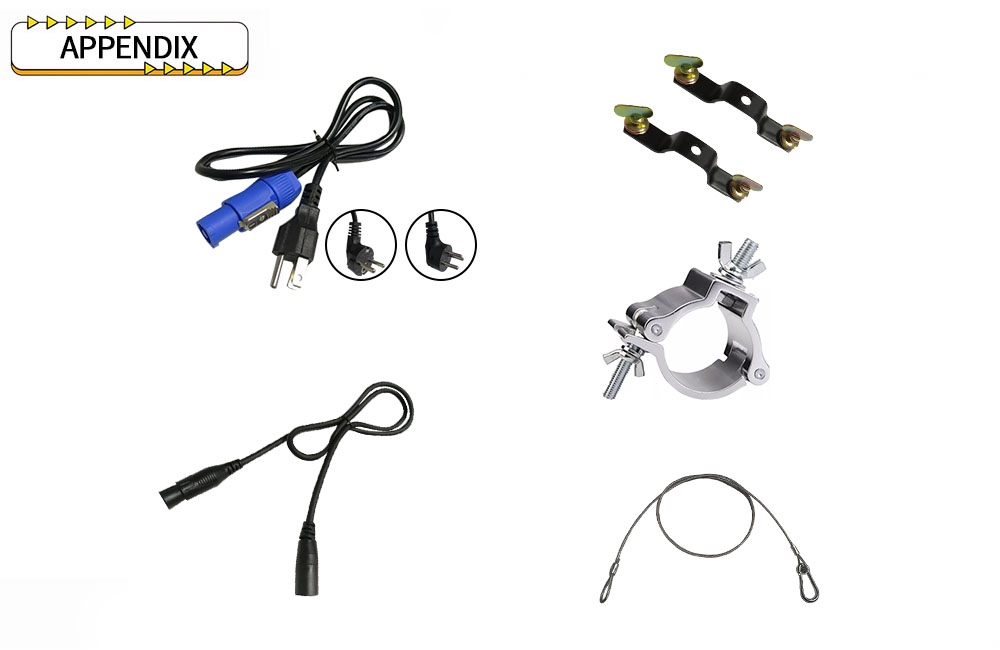

Power cable europcan/american/british oprional DMX signal line 3pin optional OMEGA standard for clamps
Clampsoptional 48-51mm max 300kgho-ok for truss Safety cable optional 4MM,length 680MM safety cable

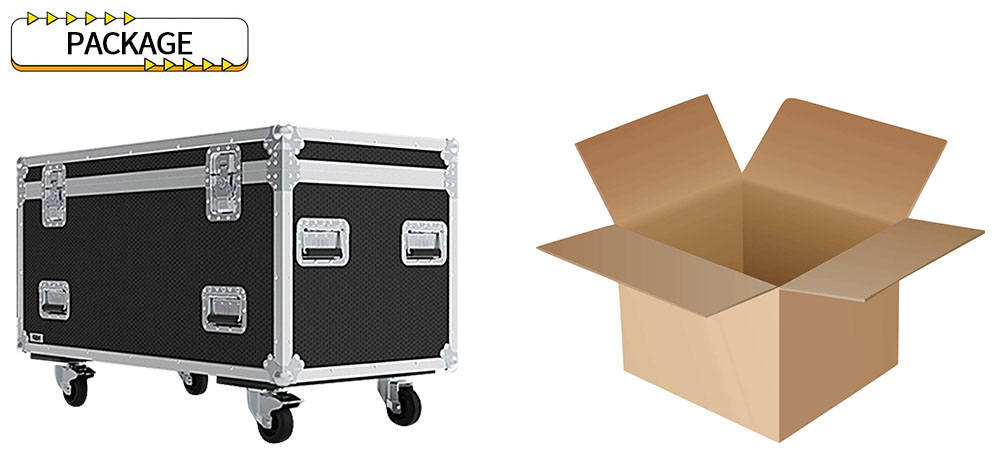

ROXTER-CASE,OPTIONAL,FLYCASE 1IN1/2 IN 1 FOAM SHELL,OPTIONAL
| PRODUCT SPECIFICATION |
230W双通道 USER MANUAL-2A（16&20CH）.pdf
| VIDEO SHOW |
https://www.youtube.com/watch?v=D1Fb5-8oFxk&ab_channel=jackxie
