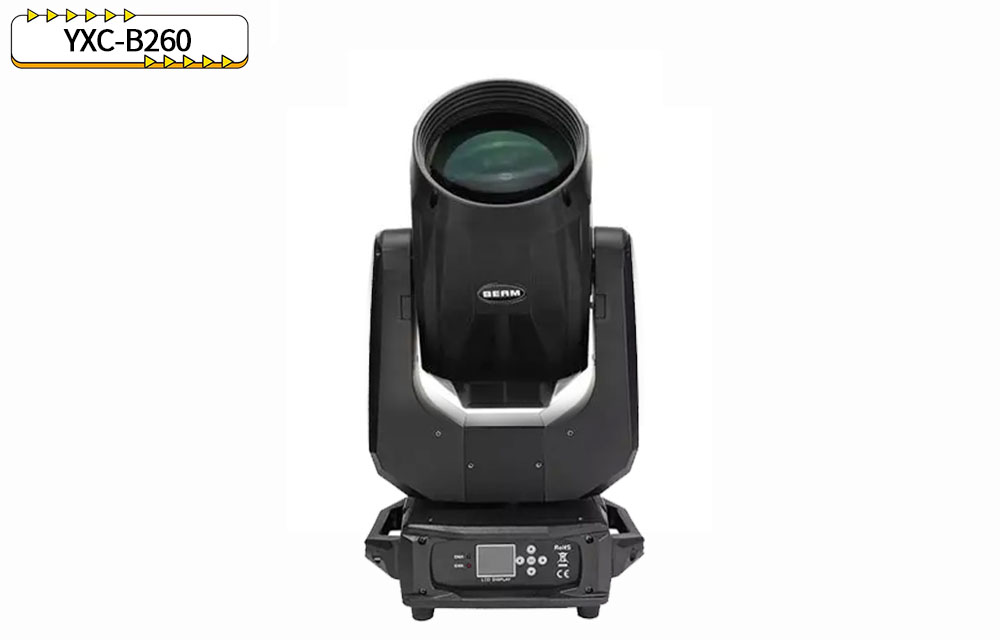

YXC-B260

Home>>Stage lighting


RDM remote address code intelligently detects obstacles, Remote DMX controller controls bubble point and defoaming,At the same time, the display panel can be set to open the bubble function,Prism system: 16+8 prisms, 16-prism rotatable prism optional; high light combination mirror, strong light, full beam.540° rotation and 270° vertical rotation are fast and stable,The lamps are equipped with intelligent photoelectric reset correction system,Accidental misuse can also automatically restore the original position,Cooling system: Use CFD software to analyze and calculate the heat flow of the lamps, design a low-noise cooling system, use 1 eddy current fan for DC wick cooling, use 2 imported 8*8 DC fans to cool the bulb system,3 6*6 fans/circulating lights for internal heat dissipation,Temperature tested at 40 degrees ambient temperature, 16 channels, the factory standard setting is 16 channels


Atmospheric stage rotating LED lights, less noise, higher brightness, not easy to get hot, and higher lighting load.


Name

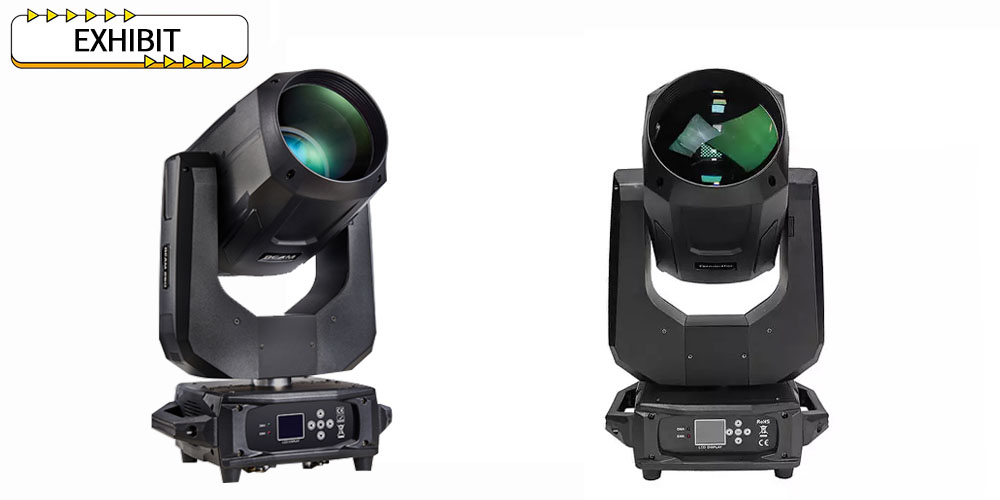

260 beam moving head light
Voltage
AC110-240W 50-60Hz
Power
450W
Bulb
260 W imported gang adze cup phoenix wick
Color temperature
8500K
Average life
2000h
Channel
16 international standard DIX512 channels
Horizontal scan
540° (16bit precision scan) electronic error correction
Vertical scan
270° (16bit precision scan) electronic error correction
Pattern
9 fixed patterns + 4 glass patterns + white light
Color chips13 color chips + white light
Prism disk
16 prisms and 16+8 prisms, double prism superimposed independent colorful fog and fogging functions
Dimming
0-100% linear dimming
Full-coated lens
large-diameter light-emitting full set of ball silent fans
Size
58cm*31.5cm*24cm
Weight
17KG
Colour
Black
Protection class
IP20

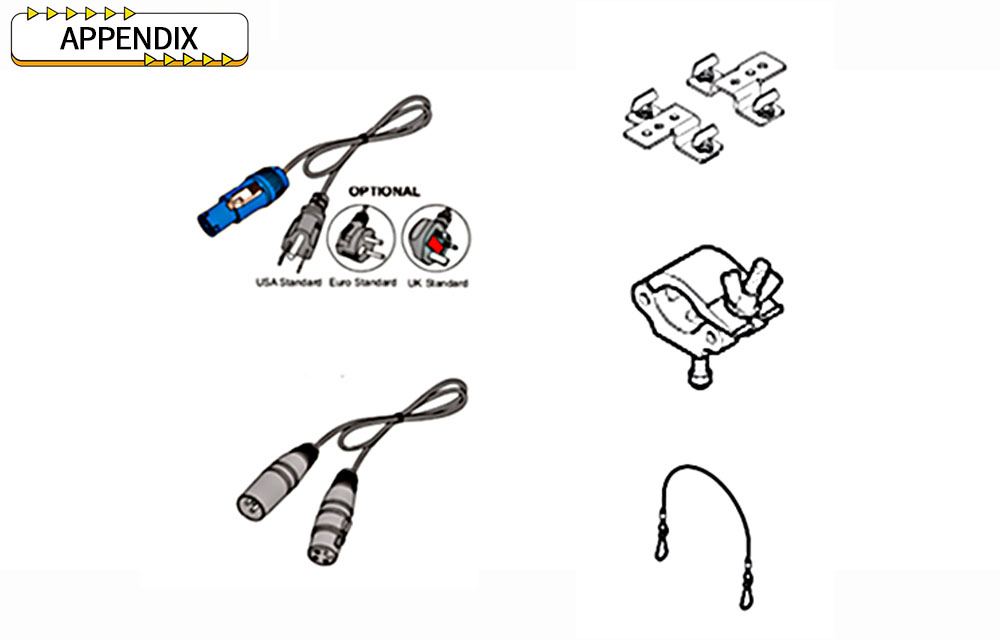

Power cable europcan/american/british oprional DMX signal line 3pin optional OMEGA standard for clamps

Clampsoptional 48-51mm max 300kgho-ok for truss Safety cable optional 4MM,length 680MM safety cable

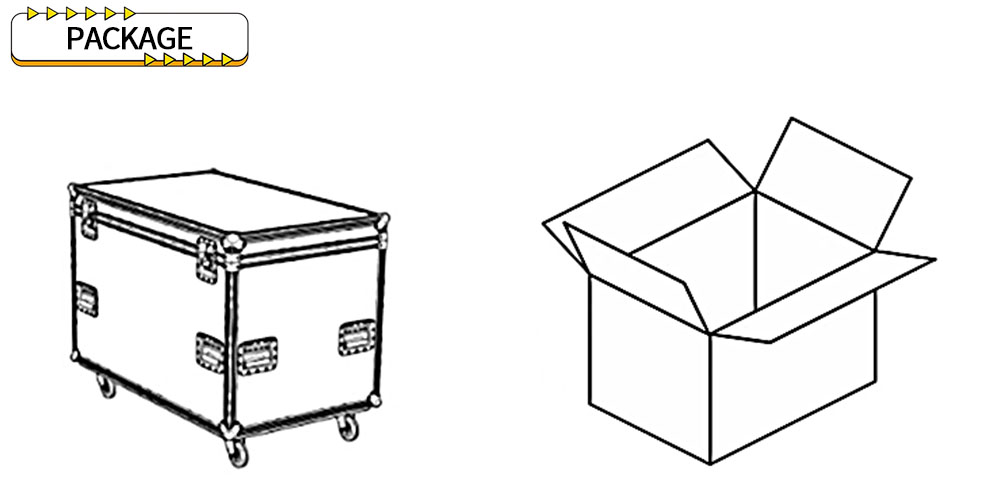

ROXTER-CASE,OPTIONAL,FLYCASE 1IN1/2 IN 1                             FOAM SHELL,OPTIONAL
