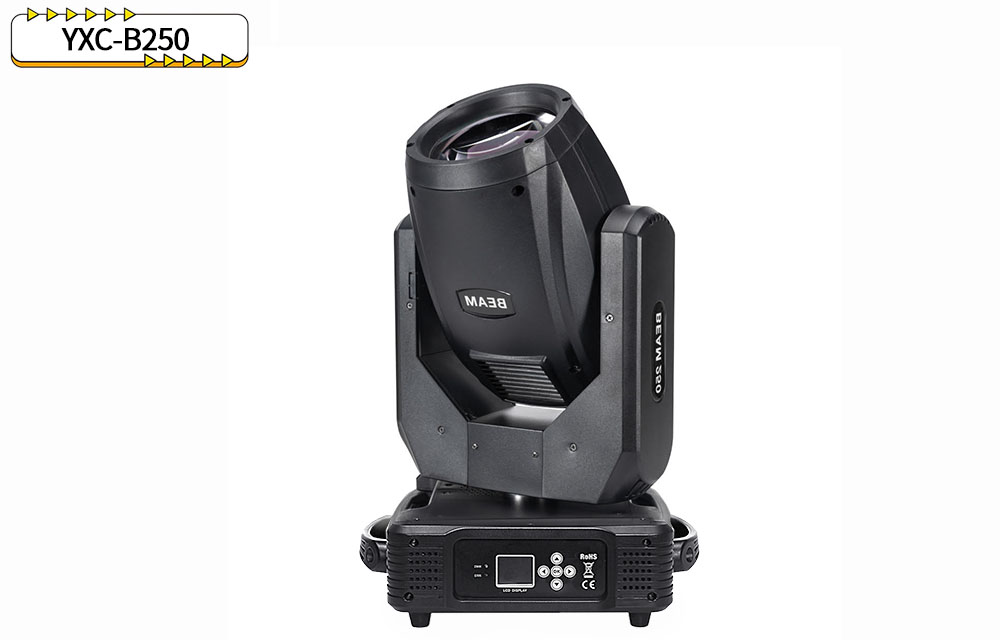

YXC-B250

Home>>Stage lighting


RDM remote adjustment of address code to intelligently detect obstacles,Remote DMX controller controls bubble point and defoaming,At the same time, the display panel can be set to enable the bright bubble function of the prism system: 16+8 prisms, 16 prisms can be rotated for optional prisms; high-light combined mirrors are strong light, full beam.The 540° rotation and 270° vertical rotation speed of the beam is fast and stable, and the lamp is equipped with an intelligent photoelectric reset correction system that can automatically return to its original position due to accidental misoperation,Cooling system: use CFD software to analyze and calculate the heat flow of the luminaire, 5,Design low-noise cooling system, use 1 eddy current fan for DC wick cooling, use 2 imported 8*8 DC fans to cool the bulb system, 3 6*6 fans/circulating lamps for internal heat dissipation, the temperature is tested at 40 degrees ambient temperature, channel DMX: 16-channel factory platform


Strong beam, high-definition lens, suitable for concert venues, performance stages


Product name
250w beam moving head light
Input voltage
AC100-240V, 50/60Hz
Power consumption
450W
Light source
Lipstick MSD Silver 250W lamp
Average life
1500 hours
7500K
7500K
Beam angle
2 degrees
DMX channel
16 channels
Dimmer
0-100% Linear Dimmer
Strobe
1-25 times/second
Color wheel
14 colors + open, half color and full color,
Gobo wheel13 static gobos + open
Function Colorful Prism
Make Color Beam Effect
Effect prism
2 prisms (8+48), (16+48), (24+48) optional, with rotation
Focus
Electronic line focusing
Control mode
DMX512
Working temperature
-20°~70°
Tilt
270 degrees
IP ratingIP20
weight
18.7kg

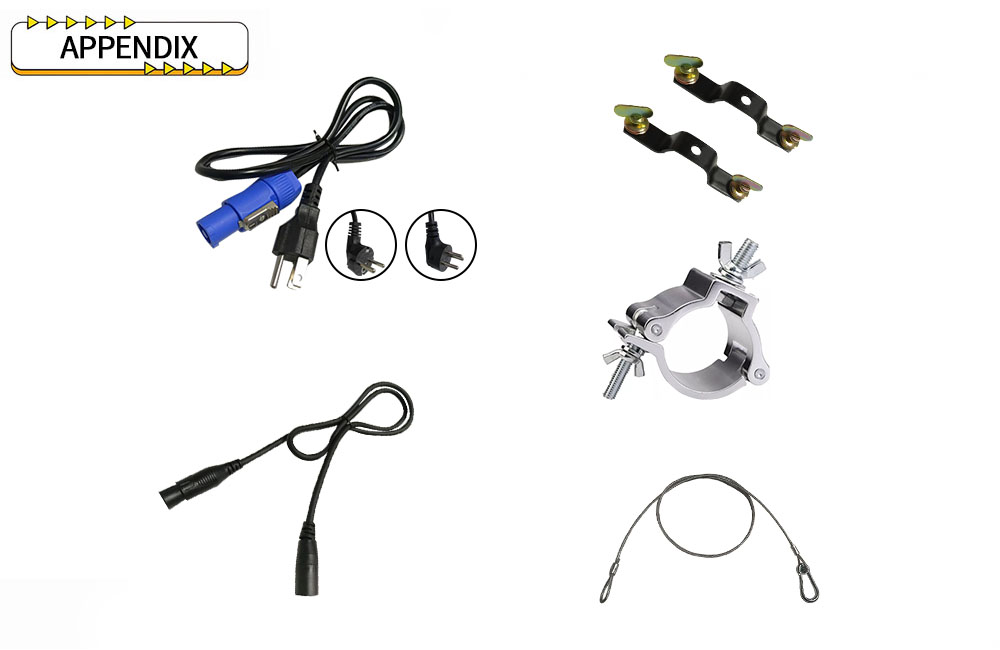

Power cable europcan/american/british oprional DMX signal line 3pin optional OMEGA standard for clamps

Clampsoptional 48-51mm max 300kgho-ok for truss Safety cable optional 4MM,length 680MM safety cable


ROXTER case optional Flight case 1IN1/2 IN 1               foam shell optional
