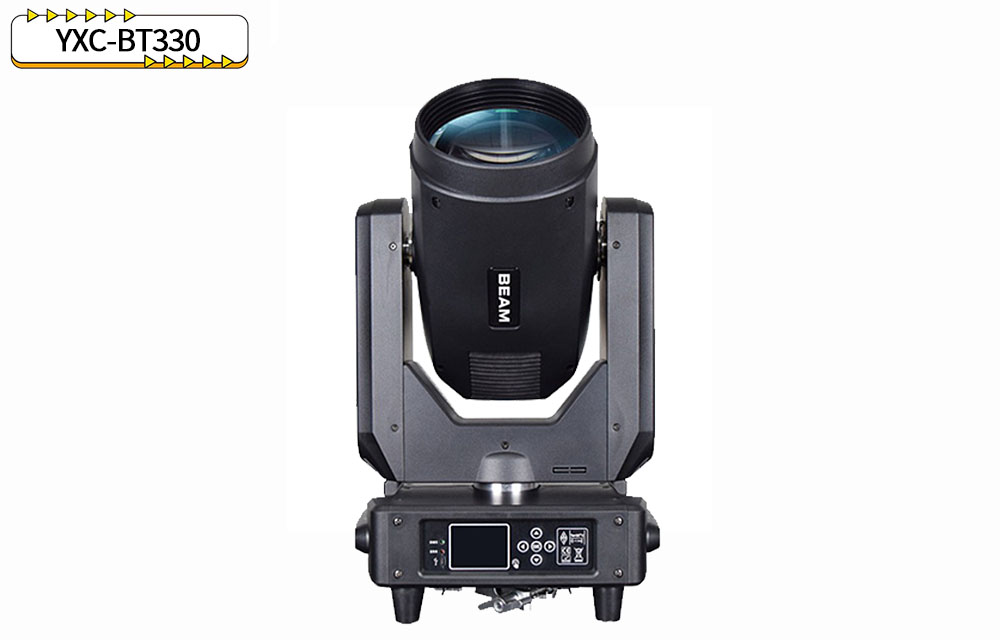

YXC-BT330

Home>>Stage lighting


RDM remote address code intelligently detects obstacles,Remote DMX controller controls bubble point and defoaming,At the same time, the display panel can be set to open the bubble function,Prism system: 16+8 prisms, 16-prism rotatable prism optional; high light combination mirror, strong light, full beam.540° rotation and 270° vertical rotation speed is fast and stable,The lamps are equipped with intelligent photoelectric reset correction system,Accidental misuse can also automatically restore the original position,Cooling system: Use CFD software to analyze and calculate the heat flow of the lamps, design a low-noise cooling system, use 1 eddy current fan for DC wick cooling, use 2 imported 8*8 DC fans to cool the bulb system,3 6*6 fans/circulating lights for internal heat dissipation,Temperature tested at 40 degrees ambient temperature,Channel DMX: 16 channels, factory standard


Exquisite dot matrix display, four-point touch switch can reverse 180° display


Product name
330W moving head light
Light source
Philips MSD Platinum 15R or YODN 15R
Lamp power
600W
Channel
20CH
Pan/Tilt
540/270 degrees
Strobe
Strobe available
Light Modulator
0-100% Mechanical Dimmer
Color wheel
13 colors + white
Gobo wheel
13 gobos + white (glass pattern optional)
Control
DMX 512, master-slave, automatic operation, voice control
Color temperature (CCT)
8000K
Life (hours)
50000
Input voltage (V)
AC90-240V, 50/60Hz
Operating temperature (℃)
-20 - 45
Color rendering index (Ra)
Color rendering index (Ra)
Product weight
22kg

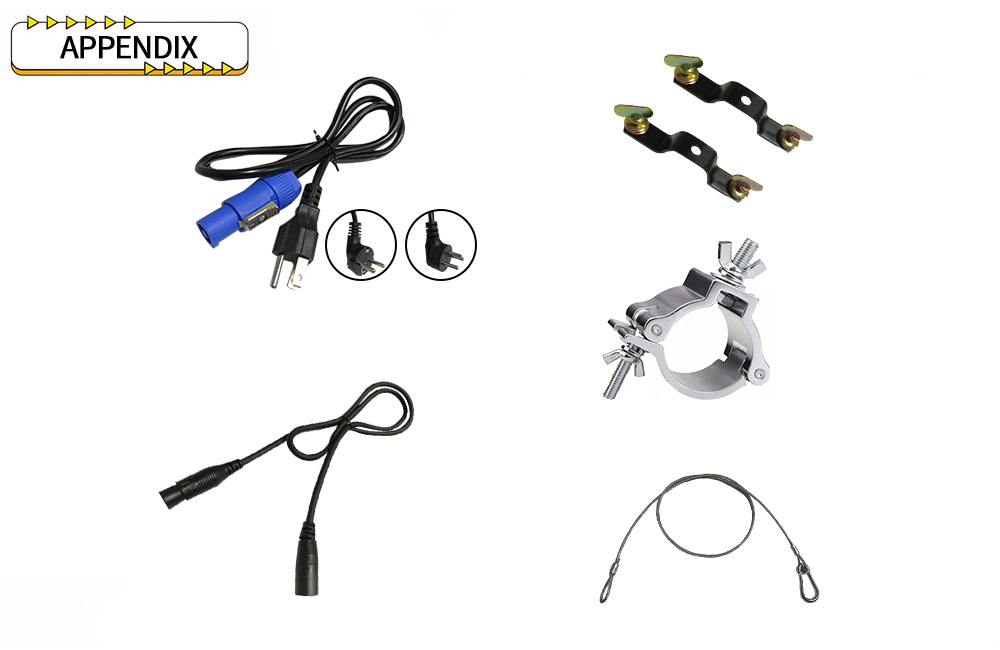

Power cable europcan/american/british oprional DMX signal line 3pin optional OMEGA standard for clamps

Clampsoptional 48-51mm max 300kgho-ok for truss Safety cable optional 4MM,length 680MM safety cable

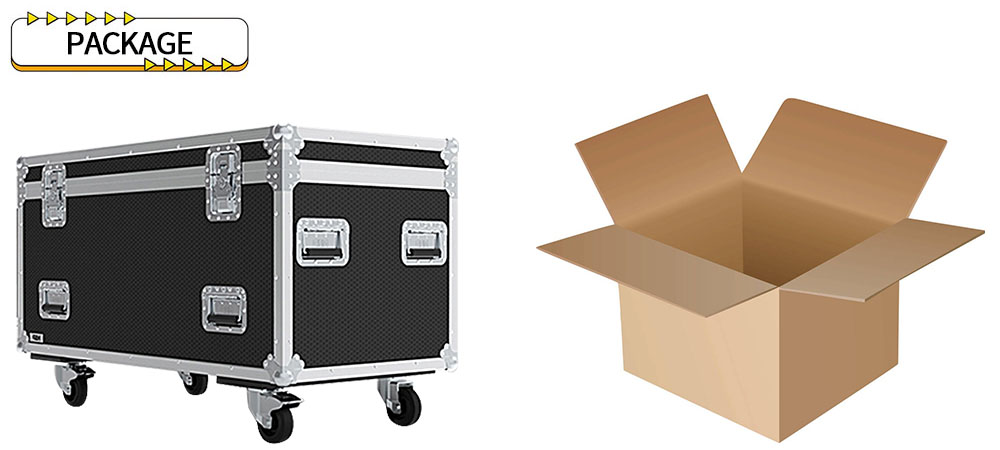

ROXTER case optional Flight case 1IN1/2 IN 1               foam shell optional
