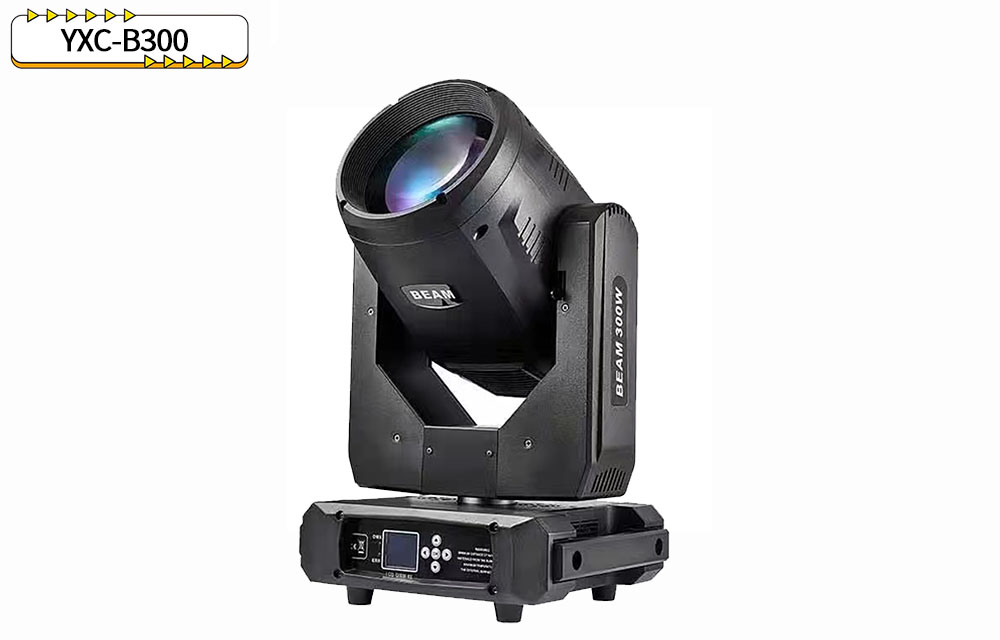

YXC-B300

Home>>Stage lighting


RDM remote address code intelligently detects obstacles,Remote DMX controller controls bubble point and defoaming,At the same time, the display panel can be set to open the bubble function,Prism system: 16+8 prism, 16 prism rotatable prism optional;High light combination mirror, strong light, full beam. beam 540° rotation and 270° vertical rotation speed is fast and stable,The lamps are equipped with intelligent photoelectric reset correction system,Accidental misuse can also automatically restore the original position,Cooling system: Use CFD software to analyze and calculate the heat flow of the lamps, design a low-noise cooling system, use 1 eddy current fan for DC wick cooling, and use 2 imported 8*8 DC fans to cool the bulb system,3 6*6 fans/circulating lights for internal heat dissipation,Temperature tested at 40 degrees ambient temperature,With atomization function, the atomization speed can be adjusted.0-100% mechanical dimming, support mechanical strobe and adjustable strobe effect,Support strobe macro function strobe speed 1-12 fps.Electric focusing, beam angle 0~4 degrees horizontal 540 ° 8bit/16bit fine-tuning vertical 270 ° 8bit/1,Channel DMX: 16 channels, factory bracket

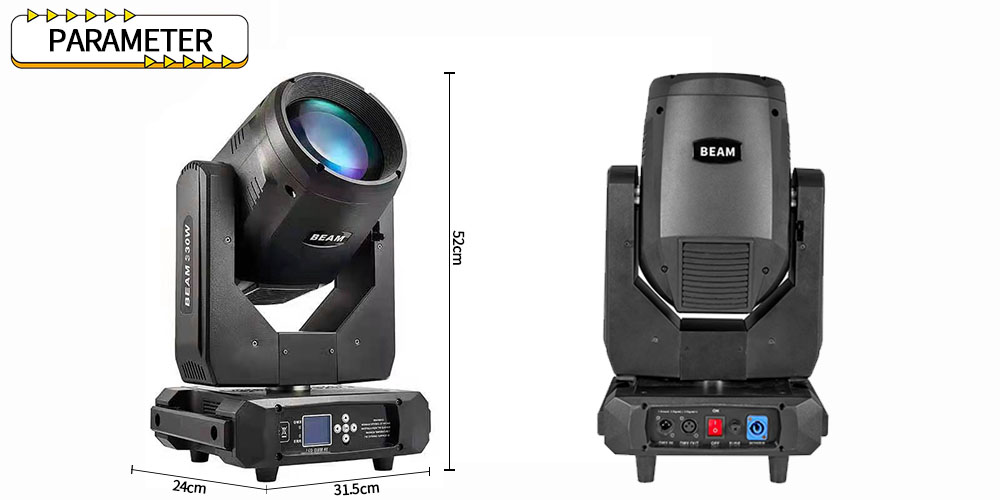

Product name
300W Shuangling mirror moving head light
Color Temperature (CCT)
4100K (Neutral White)
Lamp body material
plastic
Beam angle (°)
270
Color rendering index (Ra>)
80
Input voltage (V)
AC110V-250V
Lamp luminous efficiency (lm/w)
115
Lamp luminous flux (lm)9000
Working life (hours)1000
Working temperature (℃)
-20 - 40, -20~40
Light source
LED
Life (hours)
50000
Power consumption
100W
Zoom range
7-21°
Product weight (kg)
23

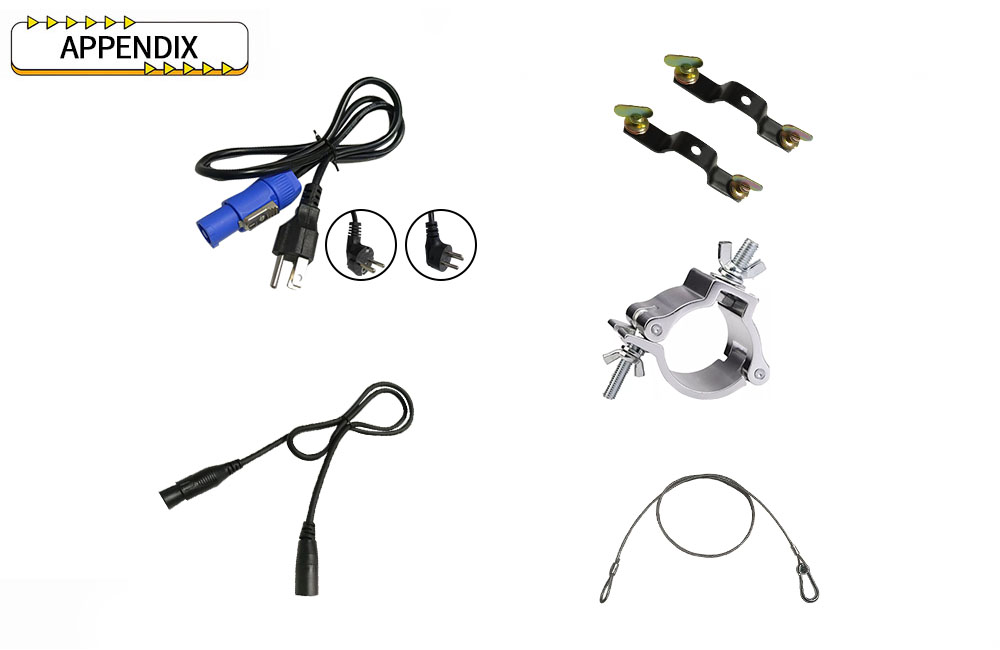

Power cable europcan/american/british oprional DMX signal line 3pin optional OMEGA standard for clamps

Clampsoptional 48-51mm max 300kgho-ok for truss Safety cable optional 4MM,length 680MM safety cable

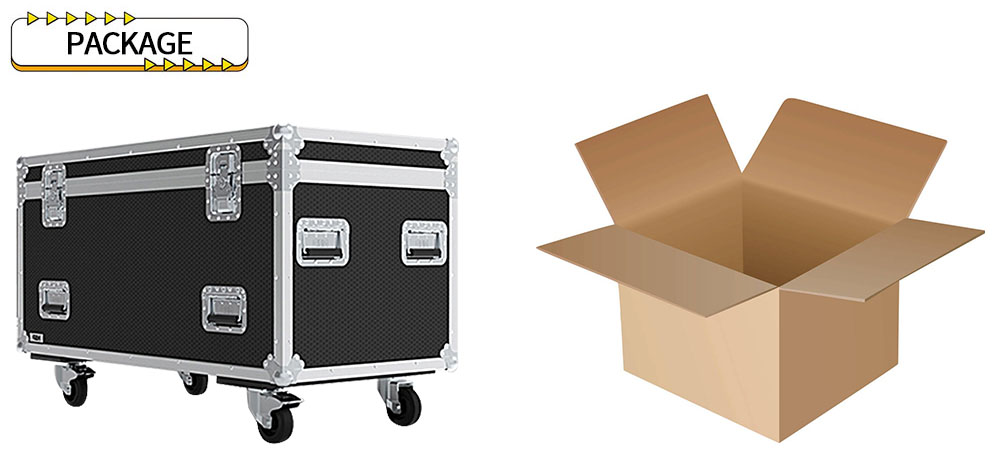

ROXTER case optional Flight case 1IN1/2 IN 1               foam shell optional
